    History of FABRI-TECHNIC Ultraviolet Sterilizer

    Fabri-Technic Engineering and Trading Co., Ltd. has started in the water treatment business since 1973.

    We are specializing in the manufacturing of ultra-violet sterilizers for eliminating bacteria and viruses in water and air. Ultraviolet Disinfection system is ideal for many commercial and industrial applications, it disinfects without chemicals, i.e. will not alter the properties of the disinfected material.

    Over the years, we delivered our UV systems to many reputable customers in Hong Kong as well as overseas including Singapore, Dubai, Thailand, Philippines, Vietnam, China and Macau. We can design and manufacture custom-built systems, uniquely catered to your requirements, your budget and your schedule.

    Our reputable clients include:

    Water UV - Hong Kong International Airport, Cathay Pacific in-flight catering, Hong Kong Central Library, Swire Coca-Cola,Vitasoy International Holdings Ltd., etc.

    Air UV - Garden Bakery, Tai Po Nethersole Hospital, Amoy Gardens etc.

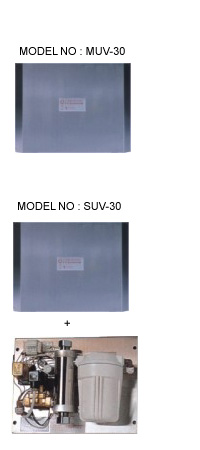

    MUV-30 & SUV-30 Ultra-Violet Sterilizer

    ModelMUV-30
    Maximum Capacity (GPM)0.03 litre / second (0.5)
    Lamp Consumption6 W
    Current Flow Rate0.15 amp
    In / Outlet Size3/8 inch
    Measurement 330(W) x 140(D) x 260(H) mm
    Weight5 kg
    Filter HousingNil

    ModelSUV-30
    Maximum Capacity (GPM) 0.03 litre / second (0.5)
    Lamp Consumption6 W
    Current Flow Rate0.15 amp
    In / Outlet Size3/8 inch
    Measurement 330(W) x 140(D) x 260(H) mm
    Weight5 kg
    Filter Housing5 inch

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-30 & SUV-30 Ultra-Violet Sterilizer

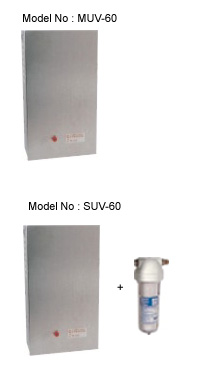

    MUV-60 & SUV-60 Ultra-Violet Sterilizer

    ModelMUV-60
    Maximum Capacity (GPM)0.06 litre / second (1)
    Lamp Consumption8 W
    Current Flow Rate0.15 amp
    In / Outlet Size3/8 inch
    Measurement 180(W) x 140(D) x 350(H) mm
    Weight7 kg
    Filter HousingNil

    ModelSUV-60
    Maximum Capacity (GPM) 0.06 litre / second (1)
    Lamp Consumption8 W
    Current Flow Rate0.15 amp
    In / Outlet Size3/8 inch
    Measurement 180(W) x 140(D) x 350(H) mm
    Weight7 kg
    Filter Housing Size 10 inch

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-60 & SUV-60 Ultra-Violet Sterilizer

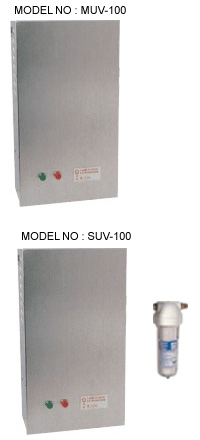

    MUV-100 & SUV-100 Ultra-Violet Sterilizer

    ModelMUV- 100
    Maximum Capacity (GPM)0.09 litre / second (1.5)
    Lamp Consumption20 W
    Current Flow Rate0.35 amp
    In / Outlet Size3/8 inch
    Measurement 300(W) x 160(D) x 510(H) mm
    Weight9 kg
    Filter HousingNil

    ModelSUV-100
    Maximum Capacity (GPM)0.09 litre / second (1.5)
    Lamp Consumption20 W
    Current Flow Rate0.35 amp
    In / Outlet Size3/8 inch
    Measurement 300(W) x 160(D) x 510(H) mm
    Weight9 kg
    Filter Housing10 inch

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-100 & SUV-100 Ultra-Violet Sterilizer
    MUV-180 & SUV-180 Ultra-Violet Sterilizer

    ModelMUV-180
    Maximum Capacity (GPM)0.19 litre / second (3)
    Lamp Consumption20 W
    Current Flow Rate0.35 amp
    In / Outlet Size3/8 inch
    Measurement 310(W) x 160(D) x 620(H) mm
    Weight13 kg
    Filter HousingNil

    ModelSUV-180
    Maximum Capacity (GPM) 0.19 litre / second (3)
    Lamp Consumption20 W
    Current Flow Rate0.35 amp
    In / Outlet Size3/8 inch
    Measurement 310(W) x 160(D) x 620(H)mm
    Weight13 kg
    Filter Housing10 inch

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-180 & SUV-180 Ultra-Violet Sterilizer
    MUV-600 & SUV-600 Ultra-Violet Sterilizer

    ModelMUV-600
    Maximum Capacity (GPM)0.63 litre / second (10)
    Lamp Consumption40 W
    Current Flow Rate0.5 amp
    In / Outlet Size1/2 inch
    Measurement 310(W) x 155(D) x 1005(H) mm
    Weight19 kg
    Filter HousingNil

    ModelSUV-600
    Maximum Capacity (GPM) 0.63 litre / second (10)
    Lamp Consumption40 W
    Current Flow Rate0.5 amp
    In / Outlet Size1/2 inch
    Measurement 310(W) x 155(D) x 1005(H) mm
    Weight19 kg
    Filter Housing20 inch

    • Typical size, capacity and design is available as custom-made model.
    		MUV-600 & SUV-600 Ultra-Violet Sterilizer

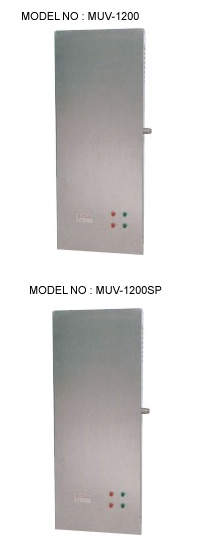

    MUV-1200 & MUV-1200SP UV Sterilier

    ModelMUV-1200
    Maximum Capacity (GPM)1.26 litre / second (80)
    Lamp Consumption180 W
    Current Flow Rate1.0 amp
    In / Outlet Size1 3/4 inch
    Measurement 440(W) x 155(D) x 1030(H) mm
    Weight26 kg

    ModelMUV-1200SP
    Maximum Capacity (GPM) 1.89 litre / second (30)
    Lamp Consumption120 W
    Current Flow Rate1.5 amp
    In / Outlet Size1 inch
    Measurement 490(W) x 155(D) x 1320(H) mm
    Weight32 kg

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-1200 & MUV-1200SP UV Sterilier

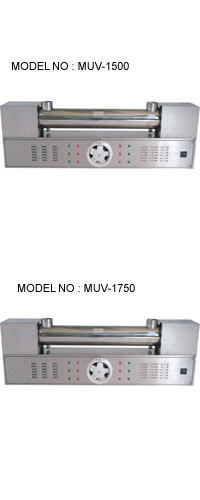

    MUV-1500 & MUV-1750 UV Sterilizer

    ModelMUV-1500
    Maximum Capacity (GPM)3.15 litre / second (50)
    Lamp Consumption120 W
    Current Flow Rate2.0 amp
    In / Outlet Size1 1/2 inch
    Measurement 1220(W) x 250(D) x 460(H) mm
    Weight50 kg

    ModelMUV-1750
    Maximum Capacity (GPM)4.72 litre / second (75)
    Lamp Consumption180 W
    Current Flow Rate2.5 amp
    In / Outlet Size2 inch
    Measurement 1530(W) x 260(D) x 490(H) mm
    Weight70 kg

    • Typical size, capacity and design is available as custom-made model.
    		MUV-1500 & MUV-1750 UV Sterilizer

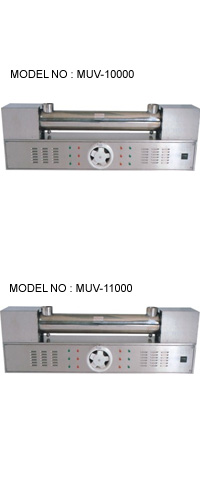

    MUV-10000 & MUV-11000 U V Sterilizer

    ModelMUV-10000
    Maximum Capacity (GPM)6.31 litre / second (100)
    Lamp Consumption240 W
    Current Flow Rate3.0 amp
    In / Outlet Size3 inch
    Measurement 1530(W) x 290(D) x 520(H) mm
    Weight62 kg

    ModelMUV-11000
    Maximum Capacity (GPM) 9.46 litre / second (150)
    Lamp Consumption360 W
    Current Flow Rate3.5 amp
    In / Outlet Size3 inch
    Measurement 1530(W) x 290(D) x 520(H) mm
    Weight72 kg

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-10000 & MUV-11000 U V Sterilizer

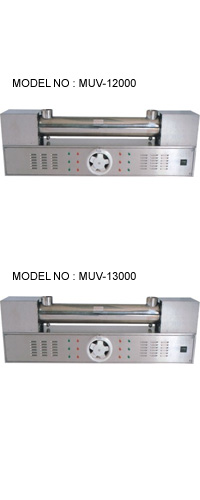

    MUV-12000 & MUV-13000 U V Sterilizer

    ModelMUV-12000
    Maximum Capacity (GPM)12.62 litre / second (200)
    Lamp Consumption480 W
    Current Flow Rate4.0 amp
    In / Outlet Size3 inch
    Measurement 1530(W) x 290(D) x 520(H) mm
    Weight82 kg

    ModelMUV-13000
    Maximum Capacity (GPM) 15.75 litre / second (250)
    Lamp Consumption600 W
    Current Flow Rate4.5 amp
    In / Outlet Size4 1/2 inch
    Measurement 1530(W) x 340(D) x 635(H) mm
    Weight102 kg

    • Typical size, capacity and design is available as custom-made model.

    Download Category

    		MUV-12000 & MUV-13000 U V Sterilizer
    FT44-8-48T/LS Syrup Sterilization

    For sterilization of viscous liquid, e.g. syrup, egg paste, sauce, etc., installed at various food factories and soft drink bottling plants in many Asian countries.

    ModelFT44-8-48T/LS
    Maximum Capacity 680 US GPH
    U. V. ExposureU V exceeding 32,000 Microwatt sec/cm
    U V lamp Duration8000 hours of operation when used continously
    U V Lamp Consumption 520 Watts
    Electrical Supply220 Volts 50 Hz
    Current Flow2.4 amps
    In / Outlet Size1 1/2" tapered to accept Brewers Hose connection
    DimensionsSterilizing unit : 144cm(L) x 26cm(D) x 88cm(H)
    DimensionsControl board cabinet : 63cm(L) x 26cm(D) x 88cm(H)
    WeightSterilizing unit : 31 kg
    WeightControl board cabinet : 55 kg

    Construction :

    • Sterilizing chamber - stainless steel;
    • Turbulence device - 304 S/S;
    • U.V. lamp - 48" Model S48T6L;
    • Quartz tubing - high purity fused type 204;
    • O seal ring - Buna / Neoprene;
    • Inner Reflector - aluminium;
    • In / outlet connection - 304 S/S.

    Download Category

    		FT44-8-48T/LS Syrup Sterilization

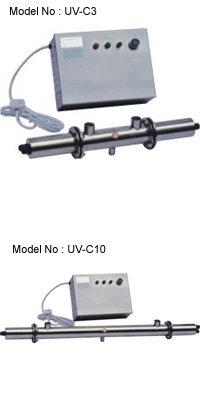

    UV-C3 & UV-C10 UV Sterilizer

    Models for Sea Water - can effectively destroy bacteria and when installed with proper filter, sea water is purified to prevent fishes from contamination.

    ModelUV-C3
    Maximum Capacity (GPM)0.19 litre / second (3)
    Lamp Consumption20 W
    Current Flow Rate0.35 amp
    In / Outlet Size3/4 inch
    Measurement-Sterilizing Chamber50(L) x 130(Dia.)mm
    Measurement-Control Box310(W) x 120(W) x 230(W) mm
    Weight2 kg

    ModelUV-C10
    Maximum Capacity (GPM) 0.63 litre / second (10)
    Lamp Consumption40 W
    Current Flow Rate0.5 amp
    In / Outlet Size3/4 inch
    Measurement-Sterilizing Chamber1060(L) x 130(Dia.)mm
    Measurement-Control Box310(W) x 120(D) x 230(H)mm
    Weight4 kg

    • Custom-made model of larger capacity is available by special order.

    Download Category

    		UV-C3 & UV-C10 UV Sterilizer

    Address: 17/F., Wing Wah Ind. Bldg., 677 King's Road, North Point, Hong Kong.   Tel: (852) 2815 8388    Contact Us
